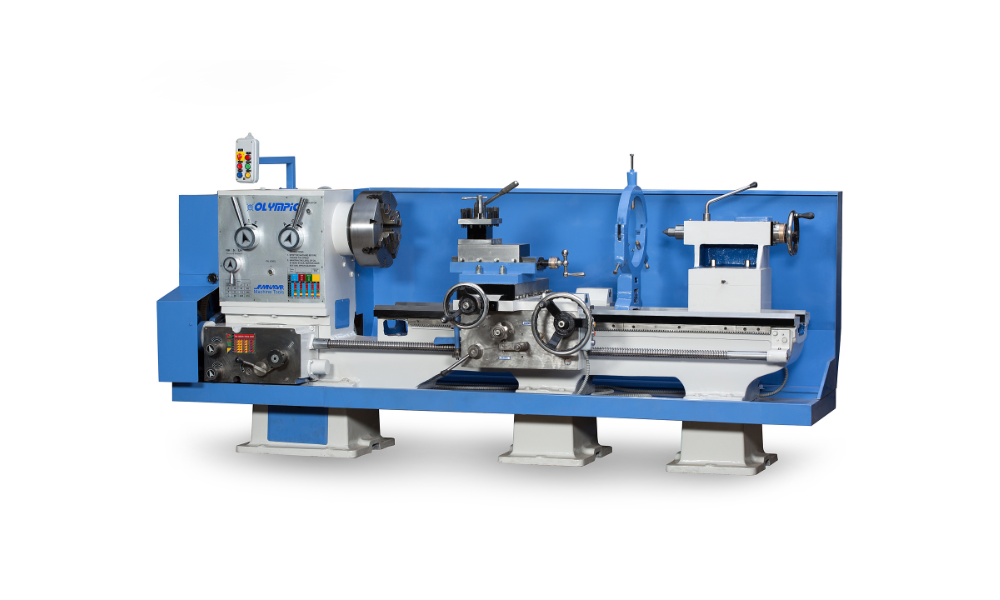

12_ft 18 inch gear head machine - AEHD-4

Olympic Lathe is a leading Heavy Duty Geared Head Lathe Machine manufacturer and trusted supplier from Rajkot, Gujarat, India. We manufacture high performance gear head lathe machines engineered for durability, precision, and heavy engineering applications.

This gear head lathe machine is specially designed for workshop, automotive, textile, paper mill, sugar mill, aerospace, die works, and heavy engineering industries where high precision and reliability are critical.

Our machine tools division focuses on manufacturing heavy duty all geared lathe machines using high-grade cast iron and superior raw material to ensure rigidity, corrosion resistance, and long service life.

Technical Data & Specifications
Center Height over flat bed ways	400 mm (16" Inch)
Width of Bed	457 mm (18" Inch)
Swing Over Bed	770 mm
Swing Over Cross Slide	500 mm
Swing In Gap	1170 mm
Length of Gap in front of Face Plate	180 mm
Bed Type	Induction Hardened (Flame Hardened)

MODEL	ADMIT BETWEEN CENTRES	LENGTH OF BED	FLOOR SPACE OCCUPIED (mm)	APROX. WEIGHT (Kgs)
MODEL	ADMIT BETWEEN CENTRES	LENGTH OF BED	FLOOR SPACE OCCUPIED (mm)	NETT	GROSS
AEHD-1	700 mm	7' ft	2660 x 1600	2500	2800
AEHD-2	1300 mm	9' ft	3140 x 1600	2700	3100
AEHD-3	1600 mm	10' ft	3500 x 1600	2900	3400
AEHD-4	2200 mm	12' ft	4110 x 1600	3000	3500
AEHD-5	2800 mm	14' ft	4720 x 1600	3200	3700
AEHD-6	3400 mm	16' ft	5330 x 1600	3600	4200
AEHD-7	4000 mm	18' ft	5940 x 1600	4000	4600

Spindle & Mechanical Specifications
Main Spindle Details
Type of Spindle Nose	A2-8
Spindle Morse Taper	MT-6
Spindle Adapter Morse	MT-5
Spindle Speeds (Nos. / Range)	09 (18 / 45 / 65 / 70 / 90 / 170 / 220 / 240 / 310 RPM)
Spindle Mounting	Tapper Roller Bearing
Tailstock Spindle
Diameter / Travel	75 mm / 250 mm
Morse Taper	MT-5
Leading Screw
Diameter / Threads	45 mm / 4 TPI

Threading, Feeds & Electrical Specifications
Threading (Fully Norton Gearbox)
Metric Threads	24 Nos. / 0.5 mm to 15 mm Pitch
Inch Threads	44 Nos. / 2 to 60 TPI
Feeds (Fully Norton Gearbox)
Longitudinal Feeds	40 Nos. / 0.066 to 2 mm/rev
Cross Feeds	40 Nos. / 0.0165 to 0.5 mm/rev
Electrical Specifications
Electric Motor	5 HP / 3.72 kW
Power Supply / RPM	3 Phase / 960 RPM

Standard Accessories (Included)
• Bedways: Flame Hardened / Induction Hardened Bed Ways
• Work Holding: Chuck Back Plate (1 No.)
• Centers: Centre Adapter & Dead Centres (MT-4) - 2 Nos.
• Tools: Tool Post Spanner
• Drive: Motor Pulley
• Precision: Thread Dial Indicator
• Gearbox: Fully Norton Gearbox (Built-in)

As improvements are constantly made in our machines, the above illustrations, specifications, dimensions and technical data are subject to modifications and change without prior notice and not binding on us.

Download AEHD 12ft 18-inch Gear Head Machine Brochure

Heavy Duty Geared Head Lathe Machine Manufacturer from Rajkot, Gujarat

Product Overview – Heavy Duty All Geared Lathe Machine

The 12 Ft 18 Inch gear heavy duty lathe machine is built with a rigid bed lathe machine structure and induction hardened guideways to maintain hardness and stability.

Key Construction Features:

✔ Heavy duty geared head lathe
✔ Extra heavy duty headstock design
✔ Hardened spindle supported with roller bearing / ball bearing
✔ Wide spindle speeds range (high RPM up to industrial standards)
✔ Heavy cross slide and tool post mechanism
✔ Heavy duty all geared transmission
✔ Feed shaft with smooth gear mechanism
✔ Electrical panel board with push button switch
✔ Premium wiring, belts and fittings
✔ Standard accessories included

The geared head lathe machine is specially designed to grind, turn, drill, and shape workpieces with high performance and low maintenance.

Technical Specification (Indicative)

Bed Length: 12 Ft

Swing: 18 Inch

Spindle Speeds: Multiple geared RPM options

Gearbox: Heavy duty all geared

Headstock: Induction hardened

Drive Type: Geared head lathe

Construction: High-grade cast iron

Bearings: Roller bearing / Ball bearing

Application: Heavy engineering & precision lathe operations

Complete specification and customization available as per customer requirement.

Applications – Industrial & Heavy Engineering Use

The machine is widely used in:

✔ Heavy engineering workshops
✔ Automotive component manufacturing
✔ Textile industry machinery
✔ Rubber roller processing
✔ Sugar mill and paper mill industries
✔ Aerospace component machining
✔ Die works and spare part manufacturing
✔ Industrial machinery maintenance units

This heavy duty geared head lathe machine is ideal for high precision turning of roller shafts, rubber roller, and symmetrical objects that require precise spindle speeds and feed control.

Build Quality, Durability & Performance Advantage

Our gear head lathe machine is manufactured from superior quality cast iron and high-quality raw material to ensure maximum hardness and corrosion resistance.

Advantages:

✔ High precision machining capability
✔ Heavy duty all geared transmission
✔ High performance output
✔ Low vibration during operation
✔ Long operational life
✔ Low maintenance requirement
✔ High rpm upto required industrial speed
✔ Suitable for continuous workshop production

As a leading manufacturer of all geared lathe machines from Rajkot, we ensure that every machine meets strict industry standards.

Why Choose Olympic – Manufacturer from Rajkot, Gujarat

✔ Trusted Heavy Duty Geared Head Lathe Machine Manufacturer
✔ Advanced induction harden technology
✔ High-performance machine tools manufacturing
✔ Competitive best price in Rajkot market
✔ Skilled engineering team
✔ Complete standard accessories package
✔ Reliable supplier across Gujarat and India

We offer heavy duty all geared lathe machines that deliver precision, durability, and efficiency across various industrial applications.
