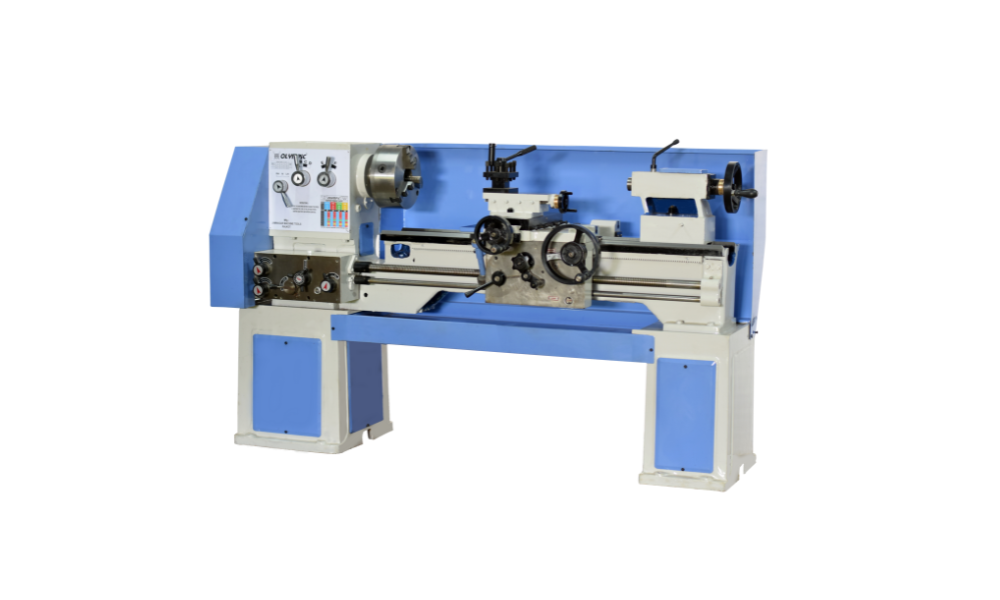

All geared Medium Duty Lathe Machine - ALX-1

Olympic Lathe is a leading All Geared Medium Duty Lathe Machine manufacturer and supplier from Rajkot, Gujarat, India. Our EC Series lathe machine is specially designed for precision metalworking, industrial use, and heavy engineering applications where durability, high precision, and low maintenance are essential.

This industrial lathe machine is built using premium quality raw materials and advanced manufacturing process standards to ensure superior rigidity, smooth metal cutting, and long service life. Lathe machines are extensively used across diverse industrial sectors including automotive, shipbuilding, manufacturing units, and tool rooms.

Specifications	ALD Series (Light Duty)	ALX Series (Medium Duty)
Centre Height over flat bed ways	165 mm	215 mm
Width of Bed	240 mm	280 mm
Swing Over Bed	320 mm	423 mm
Swing Over Cross Slide	180 mm	250 mm
Swing In Gap	510 mm	610 mm

Series	Model	Length of Bed	Admit Between Center	Net Weight (kgs)
ALD	ALD-1	1375 mm (4’-6”)	700 mm	550
	ALD-2	1600 mm (5’-3”)	930 mm	625
	ALD-3	1825 mm (6’)	1160 mm	700
ALX	ALX-1	1375 mm (4’-6”)	520 mm	750
	ALX-2	1600 mm (5’-3”)	740 mm	850
	ALX-3	1825 mm (6’)	960 mm	1000

Main Spindle & Tailstock	ALD Series	ALX Series
Spindle Nose Type	Threaded / A2-4	Threaded / A2-4
Spindle Bore / Adapter	38 mm / MT-3	40 mm / MT-3
Spindle Speeds (RPM Range)	8 Nos / 48-1000	8 Nos / 54-1200
Tailstock Spindle (Dia / Travel)	38 mm / 145 mm	50.8 mm / 145 mm
Tailstock Morse Taper	MT - 3	MT - 4

Leading Screw & Electricals	ALD Series	ALX Series
Leading Screw Diameter	25.4 mm x 4 TPI	31.75 mm x 4 TPI
Metric Threads	17 Nos / 0.5 mm to 15 mm Pitch
Inch Threads	40 Nos / 2 to 60 TPI
Electric Motor	2HP / 1.5KW, 3 Phase, 1440 RPM

Standard Accessories

Flame Hardened Bed Ways
Motor Pulley & V-Belts
Chuck Back Plate
Dead Centers (2 Nos.) & Adapter
Norton Gear Box (Single Screw)
Thread Dial Indicator
Tool Post Spanner

Extra Accessories

Full Electrical Kit (Motor, Switches, Wiring)
Face Plate & Carrier Plate
Dog / True Chuck
Steady & Follow Rest
Taper Turning Attachment
Coolant Pump with Tank
Rear Tool Post & Chip Guard

All geared Light Duty Lathe Machine

All Geared Medium Duty Lathe Machine Manufacturer from Rajkot, Gujarat

Product Overview – Medium Duty All Geared Lathe Machine

The medium duty all geared lathe machine is a powerful machine tool ideal for medium-duty and precision operations. It offers better torque transmission and accurate spindle control compared to cone pulley or light-duty systems.

Key Features

✔ Medium duty gear head lathe design
✔ Heavy-duty all geared lathe machine transmission
✔ Strong gear box with smooth RPM variation
✔ Large spindle bore capacity
✔ High precision headstock assembly
✔ Rigid feed shaft mechanism
✔ High durability cast iron bed
✔ Smooth swing over bed performance
✔ Low maintenance operation
✔ Standard accessories included

The machine is specially designed for machining workpieces that require high precision and consistent spindle speed control.

Technical Specifications (Indicative)

Type: All Geared Medium Duty Lathe Machine

Bed Length: 6 feet / 7 feet options

Spindle Bore: Industrial standard

Swing Over Bed: Heavy-duty machining range

Gear Box: Fully geared transmission

Headstock: Hardened and precision machined

RPM Speed Range: Variable spindle speeds

Feed Shaft: Heavy-duty construction

Construction Material: High-grade cast iron

Complete technical specifications are available on request.

Applications – Industrial & Automotive Use

This geared medium duty lathe is widely used for:

✔ Automotive component manufacturing
✔ Heavy engineering workshops
✔ Shipbuilding industries
✔ Metal cutting and metalworking
✔ Manufacturing units and tool room work
✔ Industrial lathe equipment applications

The lathe machine offers high precision, reliability, and durability for medium-duty operations while maintaining cost efficiency.

Build Quality & Engineering Advantage

As a trusted geared lathe machine manufacturer from Rajkot and Ahmedabad industrial region, Olympic ensures:

✔ Manufacturing with quality raw materials
✔ High rigidity and corrosion resistance
✔ Smooth gear box operation
✔ Balanced spindle bore and feed shaft design
✔ High precision machining capability
✔ Premium quality lathe equipment
✔ Long operational life

Compared to extra heavy duty lathe machines or heavy duty geared head lathe models, this medium duty all geared lathe provides ideal balance between performance and energy efficiency.

Medium, Light & Heavy Duty Range Available

In addition to All Geared Medium Duty Lathe Machine, we manufacture:

✔ Light-duty lathe machines
✔ Heavy duty lathe machine
✔ Extra heavy duty lathe machines
✔ Geared heavy duty lathe
✔ Precision lathe machine models

We are recognized as leading all geared lathe machine manufacturer and lathe machine suppliers across Gujarat and India.

Why Choose Olympic – Manufacturer and Supplier from Rajkot

✔ Leading All Geared Medium Duty Lathe Machine manufacturer
✔ Reliable medium duty gear head lathe solutions
✔ Strict quality control manufacturing process
✔ Best quality lathe machines
✔ Competitive pricing
✔ Industrial-grade machine tools
✔ Custom configuration based on industrial use

Our EC Series lathe machine is built to deliver efficiency, precision, and durability for medium-duty industrial applications.
